Delving into the Mysterious World of Dark Current

1. Understanding the Basics

Alright, let's talk about "dark current." It sounds like something straight out of a sci-fi movie, doesn't it? Maybe a hidden energy source used by space villains? Well, the reality is a bit more grounded. In the realm of electronics, particularly when we're talking about light-sensitive devices like photodiodes or image sensors, dark current refers to the small amount of current that flows even when there's absolutely no light shining on the sensor. Think of it as a tiny bit of electricity "leaking" through, even when the tap is supposed to be completely turned off. This "leakage" isn't usually a huge problem, but it can impact the quality of your images or the accuracy of your light measurements, especially in low-light situations. It's like trying to hear a whisper in a room where a faint hum is always present. You need to understand where that hum originates.

So, why does this dark current exist? Is our equipment just inherently flawed? Not exactly. It's more about the unavoidable nature of semiconductors and thermal energy. At absolute zero (that's -273.15 degrees Celsius or -459.67 degrees Fahrenheit), all molecular motion stops. But unless you're conducting experiments in deep space, you're dealing with some degree of heat. This thermal energy jostles the electrons inside the semiconductor material, giving some of them enough of a kick to jump across the energy barrier and create a small current — even in the absence of light. It's like a few mischievous kids sneaking out of their rooms at night, even when they're supposed to be asleep.

Another way to visualize it is to think of a dam holding back water. In a perfect world, the dam would be completely leak-proof. But in reality, there are always tiny cracks and imperfections that allow a small amount of water to seep through. This seepage is analogous to the dark current in a semiconductor device. The higher the temperature, the more "cracks" seem to appear, and the more water (or current) leaks through. So, temperature plays a vital role, and is frequently a main driver that must be considered.

We also need to understand that dark current isn't constant. It varies from device to device, and even within the same device over time. Little imperfections or variations in the manufacturing process can contribute to differences in dark current levels. This variability is a key reason why careful calibration and characterization are essential in many applications that rely on sensitive light measurements. We need to know the baseline noise to truly appreciate the signal, right?

Unpacking the Root Causes

2. Temperature's Pivotal Role

As we touched on earlier, temperature is a major player when it comes to dark current. The higher the temperature, the more thermal energy is available to excite electrons and allow them to cross the energy gap within the semiconductor material. This relationship is roughly exponential, meaning that a small increase in temperature can lead to a significant increase in dark current. Think of it like a pot of water on a stove — as the heat increases, the water boils faster. In the same way, as the temperature of a photodiode increases, the dark current shoots up faster. This is one of the key reasons why cooling systems are often used in sensitive scientific cameras and other high-performance light-sensing equipment. Keeping the sensor cool helps to minimize dark current and improve the signal-to-noise ratio.

Beyond just the overall temperature, temperature gradients can also play a role. If one part of the sensor is hotter than another, it can create localized areas of higher dark current, which can then lead to non-uniformity in the overall image or measurement. Imagine baking a cake where one side of the oven is significantly hotter than the other — you'll end up with a cake that's unevenly cooked. Similarly, temperature gradients on a sensor can lead to uneven dark current and distorted results. That is why the goal is usually trying to spread heat evenly across the chip, instead of localized cooling methods.

Furthermore, the materials used in the semiconductor and the manufacturing process influence how drastically dark current is affected by changes in temperature. Some materials and designs are inherently more susceptible to thermal noise than others. This is why researchers and engineers are constantly working on developing new materials and fabrication techniques that can minimize the temperature sensitivity of these devices. It's an ongoing quest for the perfect balance between performance, cost, and thermal stability.

To summarize, temperature is the big boss, it is the head honcho, the main event, when thinking about causes of dark current. Mitigating temperature's effect is usually the first and most important step to take in any low light application. This can include simple things like forced air cooling with a fan, or advanced liquid nitrogen and closed cycle cooling systems. Selecting the right tools for the right job is paramount.

Material Matters

3. Digging Deeper

The type of semiconductor material used in a device has a profound impact on its dark current characteristics. Silicon (Si) is a common choice for photodiodes and image sensors, but other materials like germanium (Ge), indium gallium arsenide (InGaAs), and mercury cadmium telluride (HgCdTe) are also used, particularly in applications that require sensitivity to different wavelengths of light. Each material has its own inherent bandgap energy, which determines the minimum energy required to excite an electron and generate current. Materials with smaller bandgaps tend to have higher dark currents at a given temperature because it's easier for thermal energy to overcome the energy barrier. Choosing the correct semiconductor is pivotal!

But it's not just the material itself that matters. The purity and crystalline perfection of the semiconductor also play a crucial role. Imperfections in the crystal lattice, such as vacancies, dislocations, and grain boundaries, can act as traps for electrons, increasing the likelihood of unwanted current flow. Similarly, impurities in the material can introduce energy levels within the bandgap, making it easier for electrons to jump across and contribute to dark current. It is like tiny bumps in the road, they may be small, but they can disrupt everything. That is why you should always try to avoid the bumps!

The manufacturing process also has a huge impact on the dark current. Contamination during fabrication can introduce impurities, and stress during processing can create crystal defects. Ensuring a clean and carefully controlled manufacturing environment is therefore essential for minimizing dark current. It is just as important as choosing the correct semiconductor.

In essence, it's a delicate balancing act. Researchers and engineers are always striving to find the right combination of materials, purity, and processing techniques to minimize dark current while maximizing other performance characteristics, such as sensitivity and speed. It's a constant optimization process, pushing the boundaries of what's possible.

Voltage Considerations

4. Bias Voltage Explained

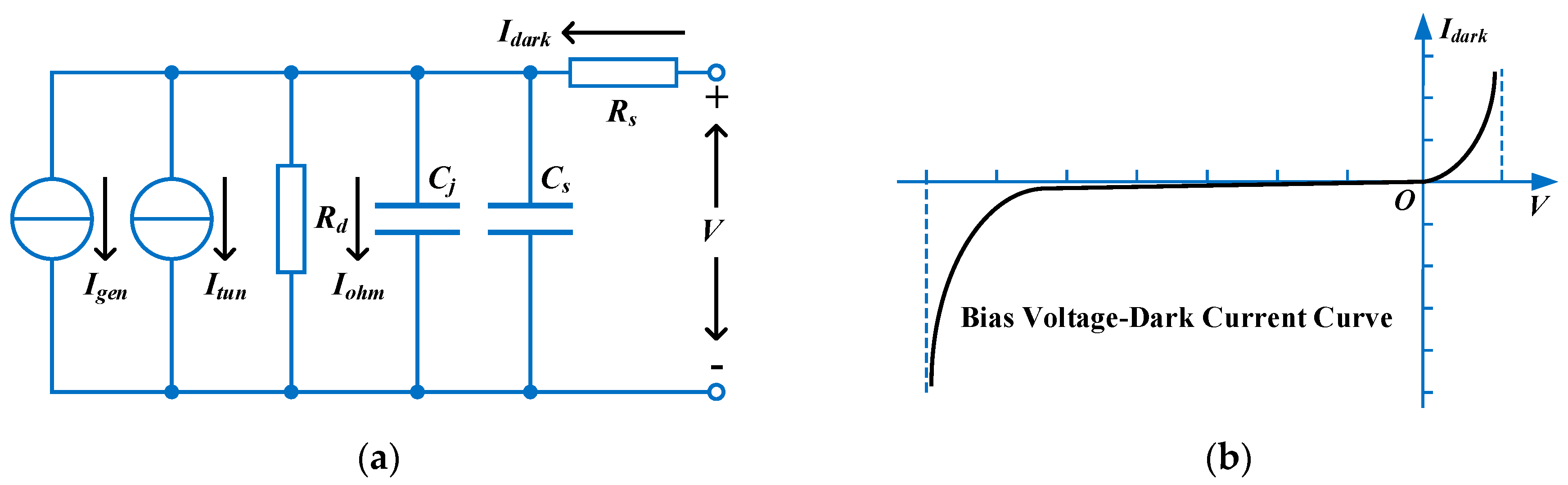

The voltage applied to a photodiode, also known as the bias voltage, can significantly influence the magnitude of the dark current. Typically, photodiodes are operated in reverse bias, meaning that the positive terminal of the voltage source is connected to the n-type side of the diode and the negative terminal is connected to the p-type side. This reverse bias widens the depletion region, which is the region where there are very few free charge carriers. A wider depletion region enhances the sensitivity of the photodiode to light, but it can also increase the dark current. It's kind of a double-edged sword, isn't it? You gain sensitivity, but you also increase unwanted noise. This is why selecting the correct voltage is very important!

Why does increasing the reverse bias voltage increase dark current? Well, as the voltage increases, the electric field across the depletion region becomes stronger. This stronger field can accelerate thermally generated electrons and holes, giving them more energy to move and contribute to the dark current. It's like increasing the slope of a hill — the steeper the slope, the faster the ball rolls down. The stronger the electric field, the faster the electrons and holes move, leading to a higher current. It's a very interesting and complex problem.

Also, high reverse bias voltages can lead to a phenomenon called impact ionization, where accelerated electrons and holes collide with other atoms in the crystal lattice, creating additional electron-hole pairs. This can further amplify the dark current, especially at higher temperatures. Essentially, it is like a chain reaction that causes exponentially more current to be present. It's like starting a snowball rolling down a hill; it gets bigger and bigger as it goes.

The optimal bias voltage is usually a compromise between sensitivity and dark current. Increasing the voltage enhances the sensitivity but also increases the dark current. Engineers have to carefully select the bias voltage and ensure that the bias circuit is properly shielded to minimize noise.

Mitigation Strategies

5. Practical Approaches to Reduce Dark Current

So, we've explored the various factors that contribute to dark current. What can be done to minimize its impact on our measurements and images? Fortunately, there are several techniques that can be employed. One of the most effective methods, as we've already discussed, is cooling. Lowering the temperature of the sensor significantly reduces the thermal energy available to excite electrons, thereby reducing dark current. This can be achieved using various cooling techniques, such as thermoelectric coolers (TECs), liquid nitrogen cooling, or even just a simple fan. The choice of cooling method depends on the level of performance required and the budget available. Just keep in mind the overall goal: reduce the heat, reduce the current.

Another approach is to use correlated double sampling (CDS). This technique involves measuring the output signal of the sensor twice: once during the dark period (when there's no light) and once during the exposure period (when there is light). The dark signal is then subtracted from the exposure signal, effectively cancelling out the dark current component. CDS is commonly used in CCD and CMOS image sensors to improve image quality, and is a very clever way to subtract out error. It's like weighing yourself while holding a bag of groceries, then weighing the groceries separately and subtracting that weight from your initial measurement. You now have your actual body weight.

Careful selection of the operating conditions, such as the bias voltage and integration time, can also help to minimize the impact of dark current. As we discussed earlier, the bias voltage can significantly influence dark current, so choosing the optimal voltage for the specific application is essential. Similarly, shorter integration times can reduce the accumulation of dark current, though this may also reduce the signal-to-noise ratio. You will always need to balance trade-offs.

Finally, advanced signal processing techniques can be used to further reduce the effects of dark current. For example, algorithms can be used to identify and correct for dark current non-uniformities across the sensor. These techniques can be particularly useful in applications where high accuracy and precision are required.

FAQ

6. Your Burning Questions Answered

Let's tackle some frequently asked questions about dark current to solidify your understanding.

Q: Is dark current always a problem?

A: Not necessarily. In many applications, the level of dark current is low enough that it doesn't significantly affect the results. However, in low-light imaging, spectroscopy, and other sensitive measurements, dark current can be a major source of noise and must be carefully managed.

Q: Can dark current be completely eliminated?

A: Ideally, we'd love to get rid of it altogether! But in reality, completely eliminating dark current is extremely difficult, if not impossible, due to the fundamental properties of semiconductors and the unavoidable presence of thermal energy. However, with advanced cooling techniques and meticulous signal processing, it can be reduced to a negligible level in many applications.

Q: Does dark current get worse over time?

A: Yes, dark current can increase over time due to factors such as aging of the sensor, exposure to radiation, and repeated temperature cycling. This is why regular calibration and characterization are important for maintaining the accuracy and reliability of light-sensitive devices. Think of it like your car: it needs regular maintenance to keep running smoothly.

Q: I'm seeing patterns in my dark current, is that normal?

A: Sadly, yes. Dark current is often not uniform across a sensor. Certain areas can exhibit higher dark current than others due to manufacturing variations or defects. This is why many cameras have "dark frame subtraction" features, allowing you to capture a dark image and subtract it from your actual images to remove these patterns. They are quite normal, but you need to know how to handle them!
