MOSFET Meltdown

1. Understanding MOSFET Failure Modes

MOSFETs, those unassuming little components, are the workhorses of modern electronics. They're the gatekeepers of current, switching signals and power with impressive speed and efficiency. But like any electronic device, they're not immortal. So, what happens when a MOSFET fails? It's not always a dramatic explosion (although, sometimes it is!). More often, it's a subtle decline in performance that can lead to headaches for anyone relying on the circuit.

Think of a MOSFET like a water faucet. When it's working, it controls the flow of water (current) perfectly. It can turn it on full blast, trickle it slowly, or shut it off completely. But what if the faucet breaks? It might get stuck open, resulting in a flood. Or it might get stuck closed, leaving you parched. A MOSFET can fail in much the same way — either shorting, opening, or becoming erratic in its switching behavior.

The failure can be caused by a variety of factors. Overvoltage, excessive current, overheating, electrostatic discharge (ESD), and even just plain old age can all contribute to a MOSFET's demise. Sometimes, the failure is immediate and catastrophic. Other times, it's a slow degradation that's difficult to detect until it's too late.

And let's be honest, troubleshooting a failed MOSFET can be a real pain. It's often buried deep within a circuit, and its behavior can be unpredictable. But fear not! With a little knowledge and a bit of detective work, you can usually track down the culprit and get your circuit back up and running. So, let's dive deeper into the specifics of MOSFET failure.

The Usual Suspects

2. Exploring Short Circuits, Open Circuits, and More

Okay, so we've established that MOSFETs can fail in a variety of ways. But what do these failures actually look like in the real world? Let's explore some of the most common scenarios. One frequent offender is the short circuit. This is where the drain and source of the MOSFET become directly connected, essentially bypassing the gate's control. Imagine the water faucet we talked about earlier being permanently stuck open. Current flows freely and uncontrollably, potentially damaging other components in the circuit. A shorted MOSFET often gets very hot and can even release that dreaded "magic smoke."

On the opposite end of the spectrum, we have the open circuit. In this case, the connection between the drain and source is broken, preventing current from flowing at all. Think of the water faucet being completely clogged. This can result in a circuit that simply doesn't work. The open circuit might be due to a broken bond wire inside the MOSFET package, or a complete failure of the semiconductor material itself.

Another common failure mode is a gate failure. The gate is the control terminal of the MOSFET, and if it fails, the MOSFET can become unresponsive. It might not turn on or off properly, or it might switch erratically. Gate failures are often caused by overvoltage or electrostatic discharge (ESD). A static shock from your finger, for example, can be enough to damage the gate and render the MOSFET useless. Prevention is key, wearing an ESD strap when handling sensitive components.

Finally, there's the more subtle failure mode of degraded performance. In this case, the MOSFET still works, but its characteristics have changed. Its on-resistance might be higher, its switching speed might be slower, or its threshold voltage might have shifted. These changes can be difficult to detect, but they can still have a significant impact on the performance of the circuit. This is like the faucet still working, but now it's leaky, or only allows a small trickle of water through even when fully opened. The overall system performance is reduced.

Digging Deeper

3. The Root Causes of MOSFET Mayhem

So, we know how MOSFETs fail, but why do they fail? Let's delve into the root causes of these electronic breakdowns. Overvoltage is a prime suspect. Exceeding the maximum voltage rating of the MOSFET can cause the gate oxide to break down, leading to a short circuit. Think of it like trying to force too much water through a pipe — eventually, it's going to burst!

Overcurrent is another common culprit. Pushing too much current through the MOSFET can cause it to overheat, leading to thermal runaway and eventual failure. This is like trying to draw too much power from an electrical outlet — it can overload the circuit and trip a breaker (or worse). Overcurrent is often a symptom of another problem in the circuit, such as a shorted load.

Overheating itself can also be a direct cause of MOSFET failure. MOSFETs generate heat when they switch and conduct current, and if this heat isn't dissipated properly, the MOSFET can overheat and fail. Proper heatsinking is crucial for preventing overheating, especially in high-power applications. Imagine trying to run a marathon in the desert without water or shade — you're not going to last very long.

Electrostatic discharge (ESD) is a sneaky killer of MOSFETs. Even a small static shock can damage the delicate gate oxide, leading to a gate failure. As mentioned before, wearing an ESD strap when handling MOSFETs is a simple but effective way to prevent ESD damage. Think of ESD as a tiny, invisible lightning bolt that can fry your electronic components. Lastly, don't underestimate the role of aging. Over time, the performance of a MOSFET can degrade due to wear and tear. The gate oxide can weaken, the on-resistance can increase, and the threshold voltage can shift. Eventually, the MOSFET will simply wear out and need to be replaced. The operating environment plays a significant role in the speed that aging occurs.

Troubleshooting Time

4. Detective Work for Electronic Circuits

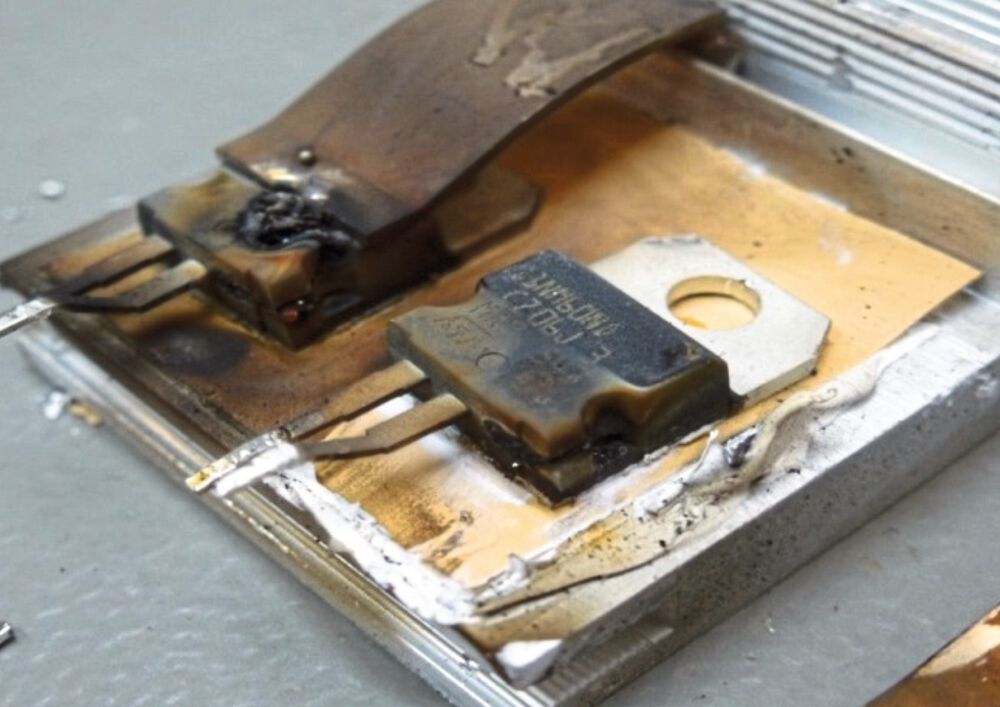

Alright, so you suspect you have a failed MOSFET. How do you confirm your suspicions? Here's where your inner detective comes into play. First, a visual inspection is always a good starting point. Look for any signs of damage, such as cracks, burns, or discoloration on the MOSFET package. If you see any of these signs, it's a pretty good indication that the MOSFET is toast. Sometimes this is as simple as looking for the tell-tale sign of that magic smoke escaping.

Next, use a multimeter to measure the resistance between the MOSFET's terminals. A shorted MOSFET will have a low resistance between the drain and source, while an open MOSFET will have a high resistance. You can also use the multimeter to check for a short between the gate and other terminals. Be sure to discharge any capacitors in the circuit before taking measurements, as they can give false readings.

If you have access to a curve tracer, you can use it to characterize the MOSFET's behavior. A curve tracer plots the drain current versus the drain-source voltage for different gate voltages, allowing you to see if the MOSFET is behaving as expected. This is a more advanced technique, but it can be very helpful for identifying subtle failures. Think of it as a medical checkup for the MOSFET. Is its pulse rate as expected? Is it reacting in a healthy manner to changes in stimulus? The curve tracer will give you the answers.

Finally, if possible, try substituting the MOSFET with a known good one. If the circuit starts working again after the substitution, you've confirmed that the original MOSFET was indeed the problem. This is a simple but effective way to troubleshoot MOSFET failures, especially if you don't have access to sophisticated test equipment. Make sure the replacement component meets or exceeds the electrical specification of the failed component. The current and voltage ratings in particular. If you can not locate an exact component match, consult with the components datasheet.

Preventative Measures

5. Extending the Lifespan of Your Electronic Workhorses

The best way to deal with MOSFET failures is to prevent them from happening in the first place! Here are some tips for keeping your MOSFETs happy and healthy. First and foremost, respect the maximum voltage and current ratings of the MOSFET. Don't push it beyond its limits, or you're asking for trouble. These ratings are provided on the components datasheet. These will outline the absolute maximum limitations and proper operating range of the component.

Provide adequate heatsinking to dissipate heat. Use a heatsink compound to improve thermal contact between the MOSFET and the heatsink. A proper heatsink will keep the component within proper operational temperatures. This extends the lifespan of components and helps maintain overall system performance.

Protect against ESD by wearing an ESD strap when handling MOSFETs. Store MOSFETs in antistatic bags. Ensure your work area is properly grounded. ESD can be a sneaky killer, and a little prevention can go a long way. Be particularly cautious during dry weather, as this is where ESD occurs more often.

Use proper gate drive circuitry to ensure that the MOSFET switches quickly and efficiently. A slow or poorly designed gate drive circuit can cause the MOSFET to overheat. Implement soft start techniques to reduce inrush current stress during startup. Design appropriate gate resistors in series with the MOSFETs gate. Regularly inspect components for potential signs of damage or corrosion. By following these preventative measures, you can significantly reduce the risk of MOSFET failures and keep your circuits running smoothly for years to come.

FAQ

6. Answering Your Burning Questions

Still got questions about MOSFET failures? Let's tackle some frequently asked questions.

7. What is the most common cause of MOSFET failure?

The most common causes are overvoltage, overcurrent, and overheating. These can all damage the MOSFET and lead to either a short circuit or an open circuit.

8. Can a MOSFET fail intermittently?

Yes, sometimes a MOSFET can fail intermittently, meaning it works sometimes and doesn't work other times. This can be due to a loose connection, a temperature-sensitive fault, or a partially damaged gate oxide.

9. How can I tell if a MOSFET is failing before it completely dies?

Early warning signs can include increased operating temperature, slower switching speeds, or a change in the MOSFET's on-resistance. These can be difficult to detect without specialized equipment, but if you notice any unusual behavior in your circuit, it's worth investigating.

10. Is it possible to repair a failed MOSFET?

In most cases, no. MOSFETs are small and complex devices, and it's usually not practical to repair them. The best course of action is typically to replace the failed MOSFET with a new one.
